London 1858

Date Last Reviewed: 29/11/2025

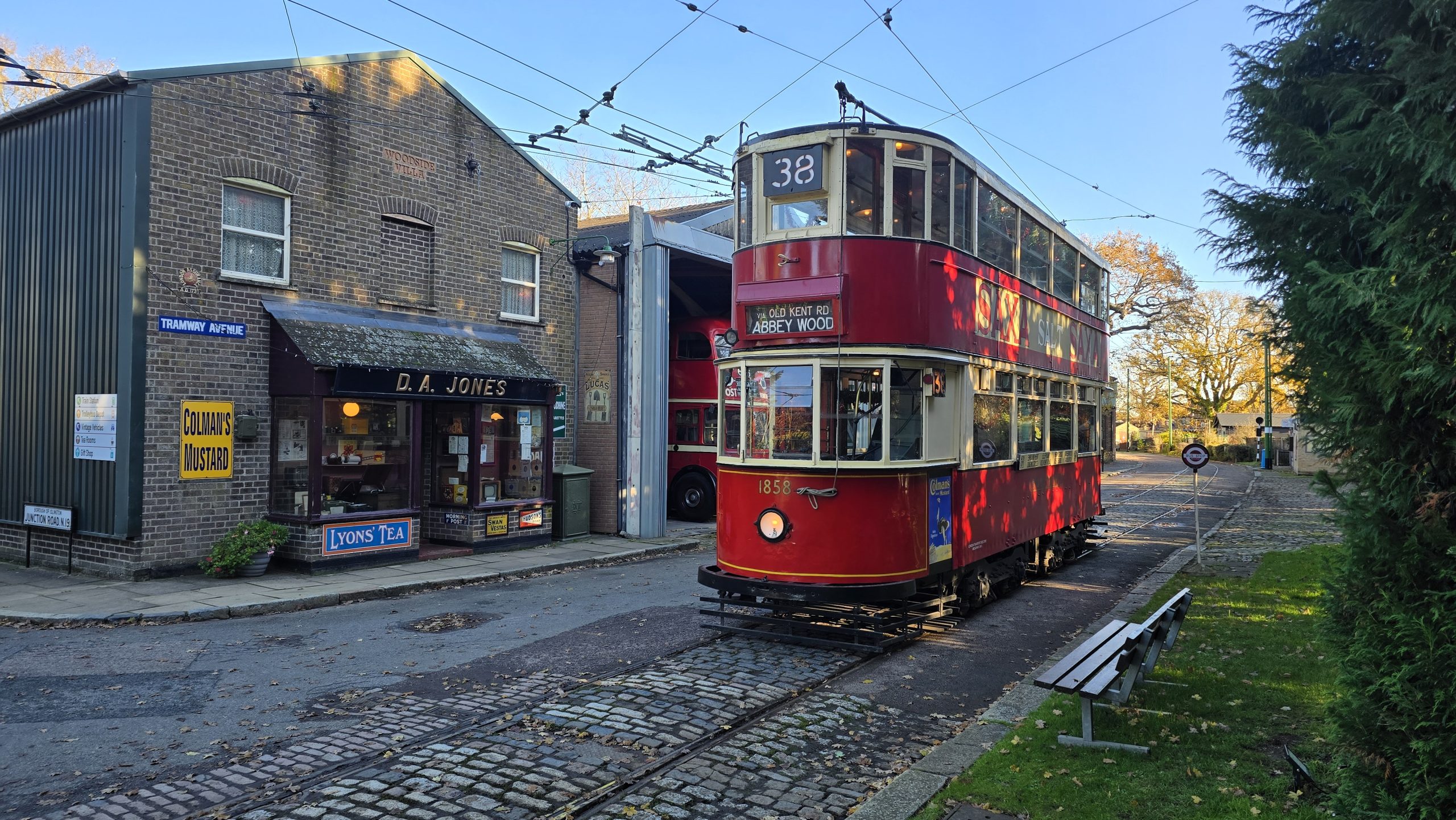

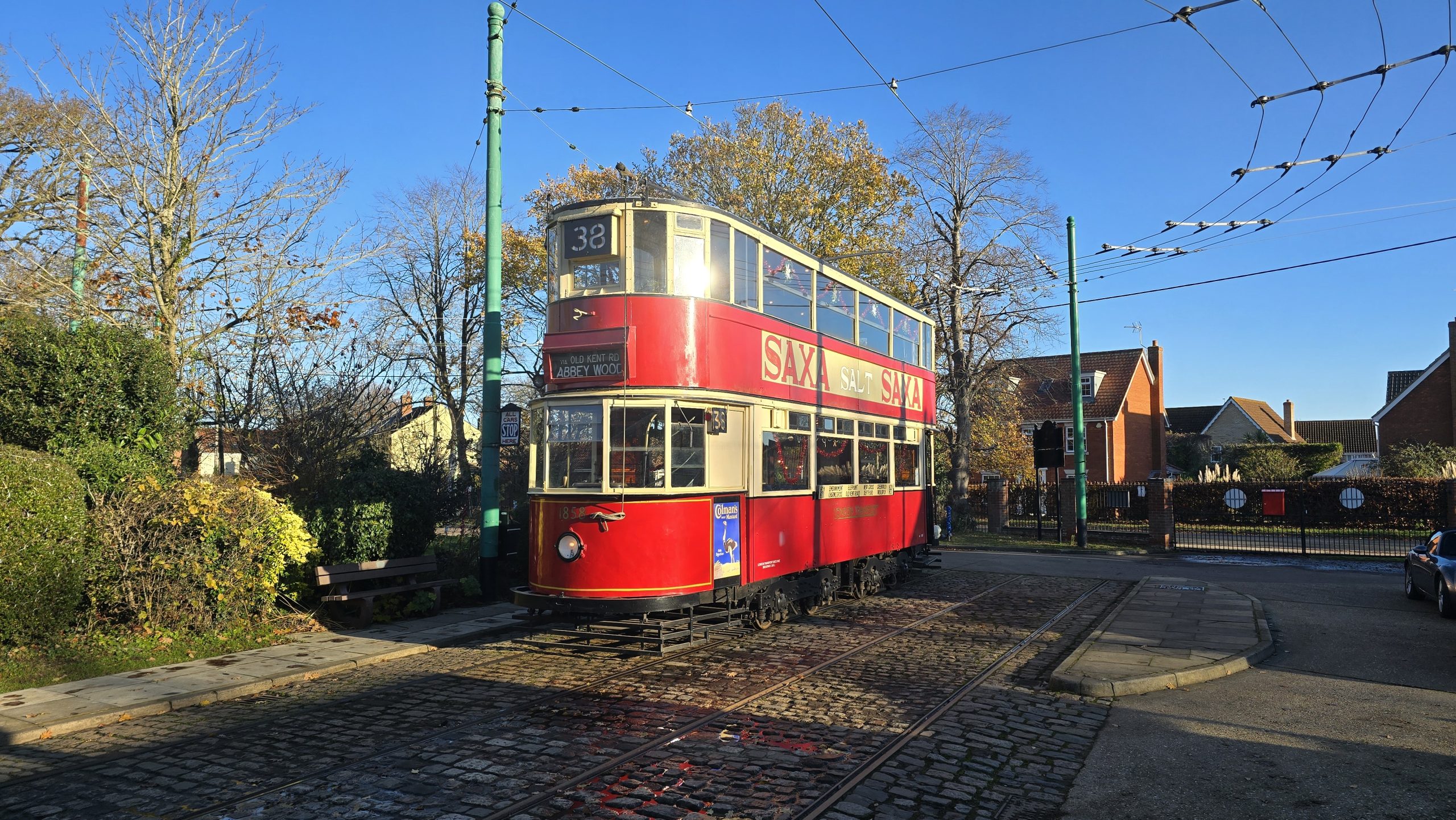

Then and Now

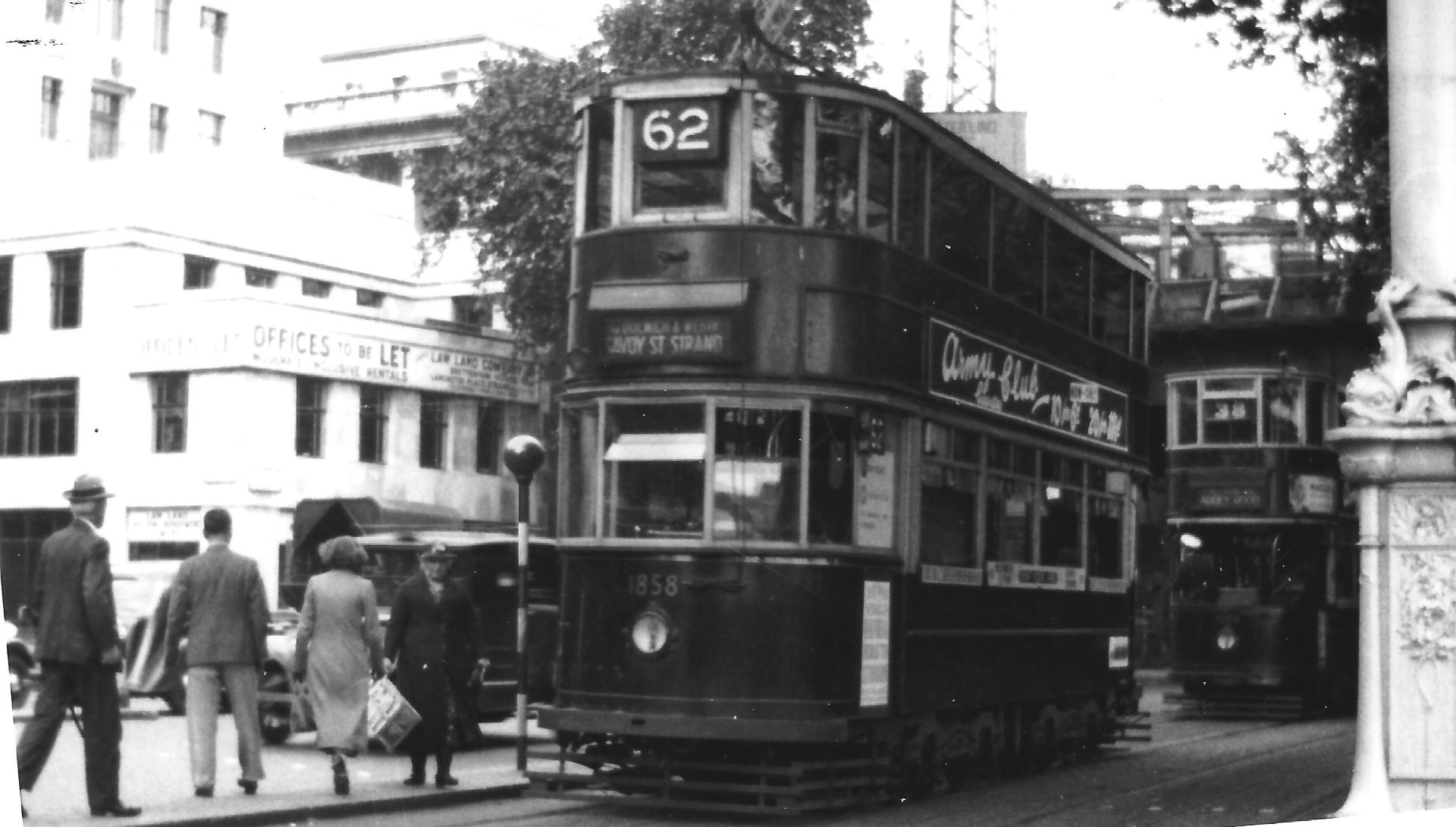

Photo Credit to George Kemp, LCCTT (1939)

Brief History

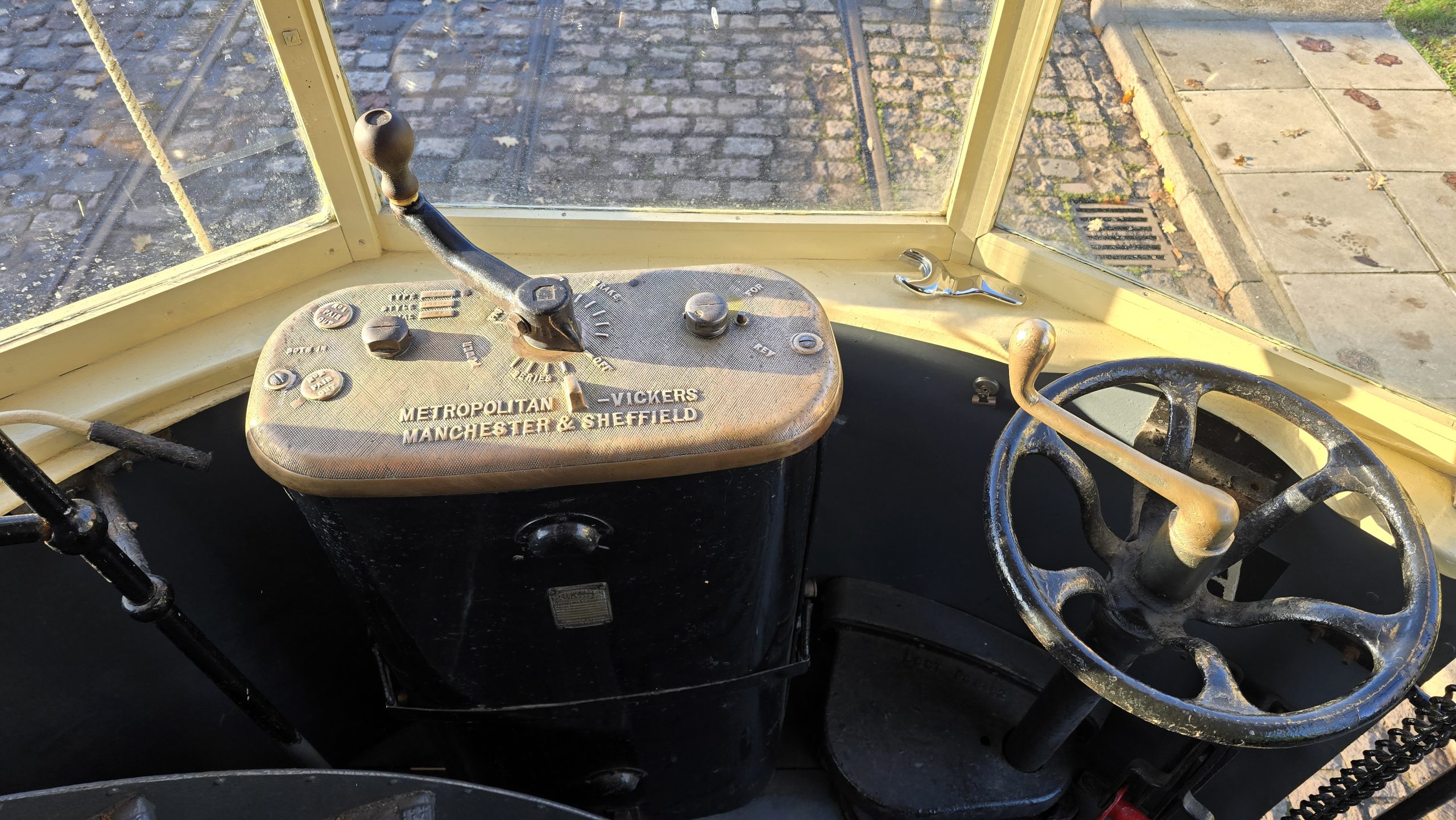

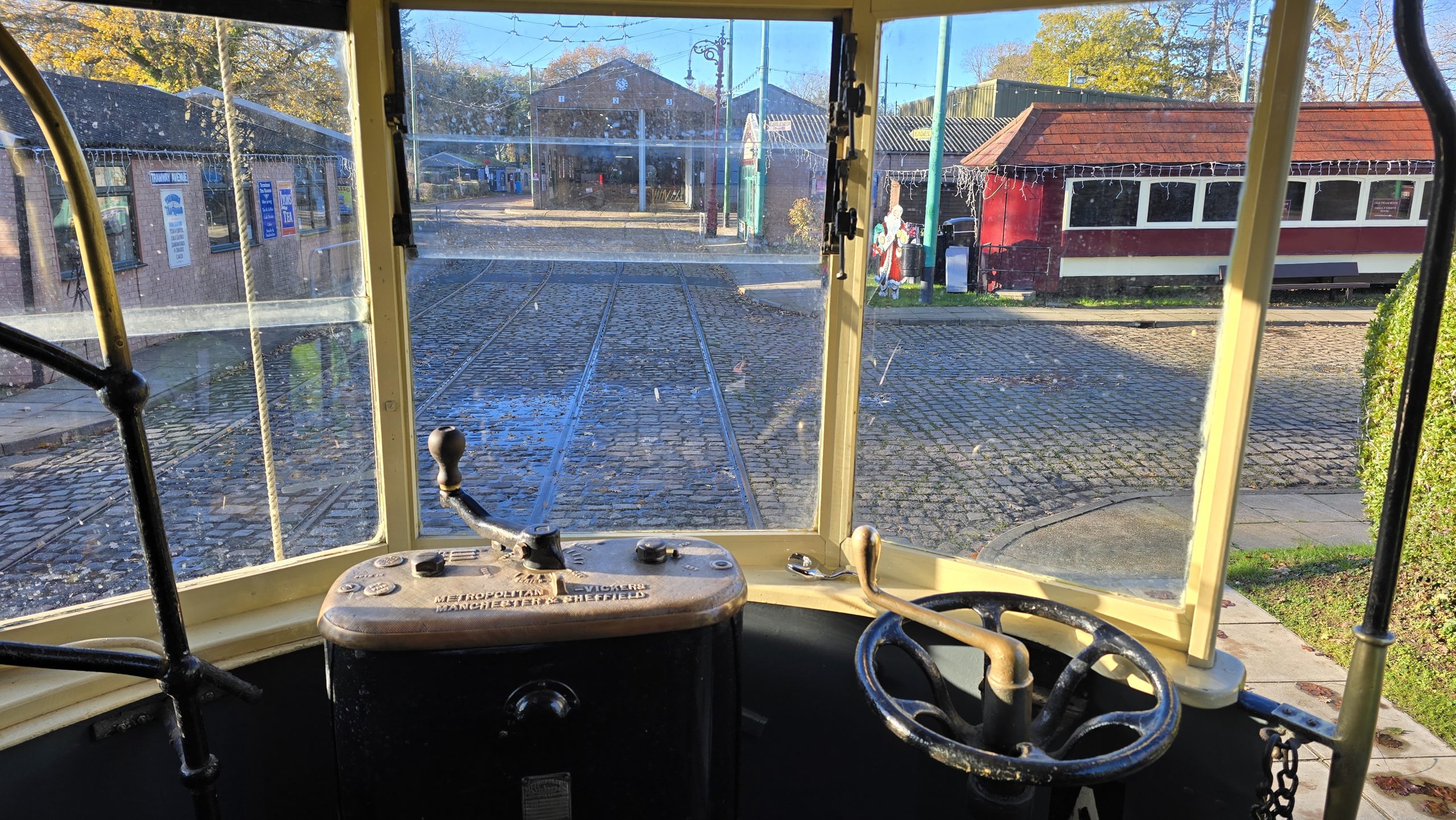

1858 was one of 101 powerful bogie cars, of class HR2 design, designed for use on routes with steep hills such as Highgate, Dog Kennel Hill and East Dulwich. They had steel framed bodies, were equipped with EMB heavy duty equal wheel trucks and metrovick controllers, they weighed a heavy 17 tons 7 cwt. This car originally had open drivers platforms when built but were later enclosed in June 1938. Ownership of the London County Council Tramways passed to London Transport upon its formation in July 1933 and 1858 ran with them latterly from the new cross depot until the last day of tram operation in the capital in July 1952. Purchased for preservation by Peter Davis, 1858 spent several years in outside storage at Chessington Zoo before coming to the museum in 1964.

Technical Specifications

Body Builder:

Truck Builder:

Motors:

First Owner / Operator:

Seating Capacity:

Current Status:

Current Location:

English Electric Co

EMB

4 X Metrovick 35HP

London County Council

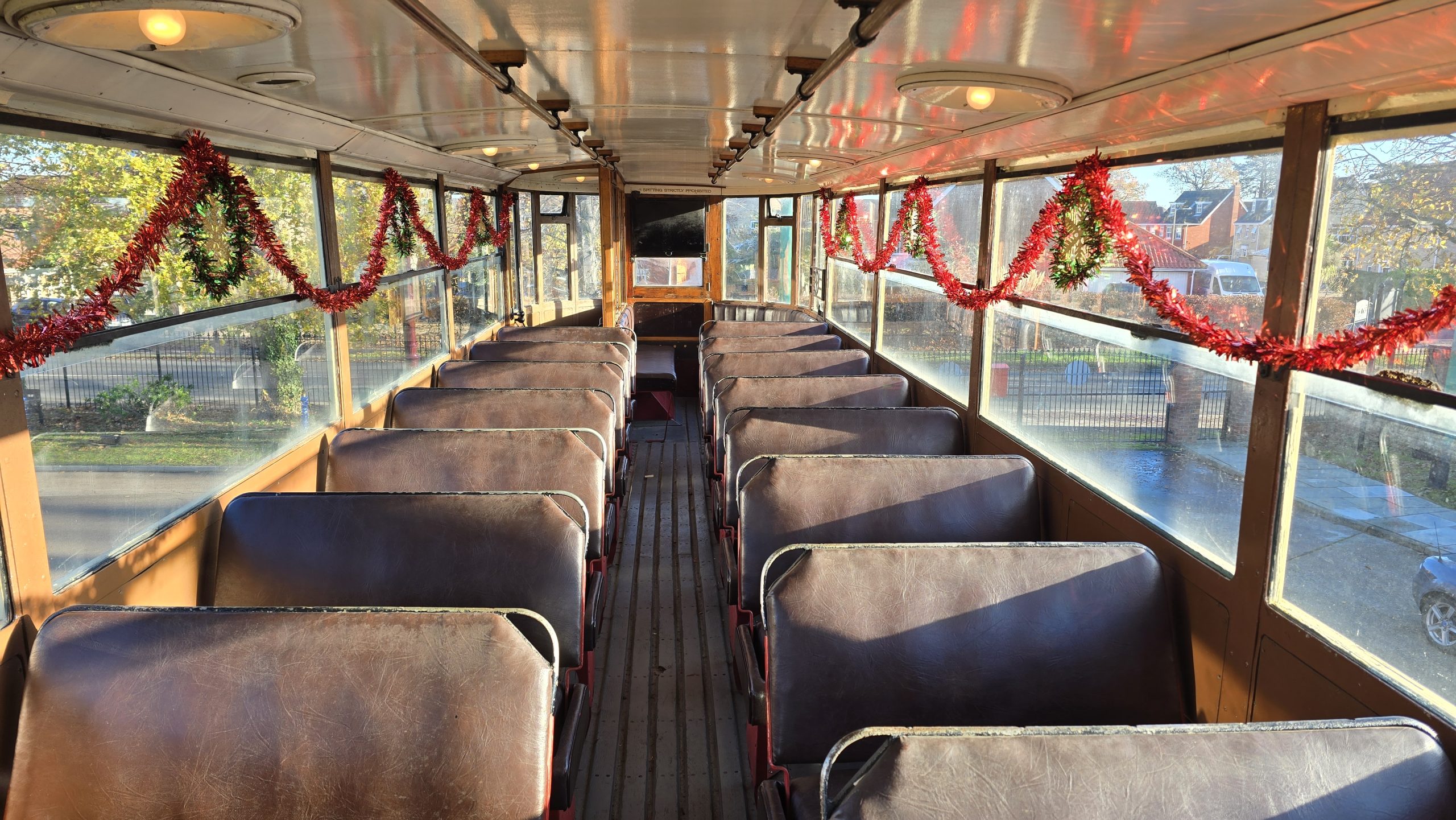

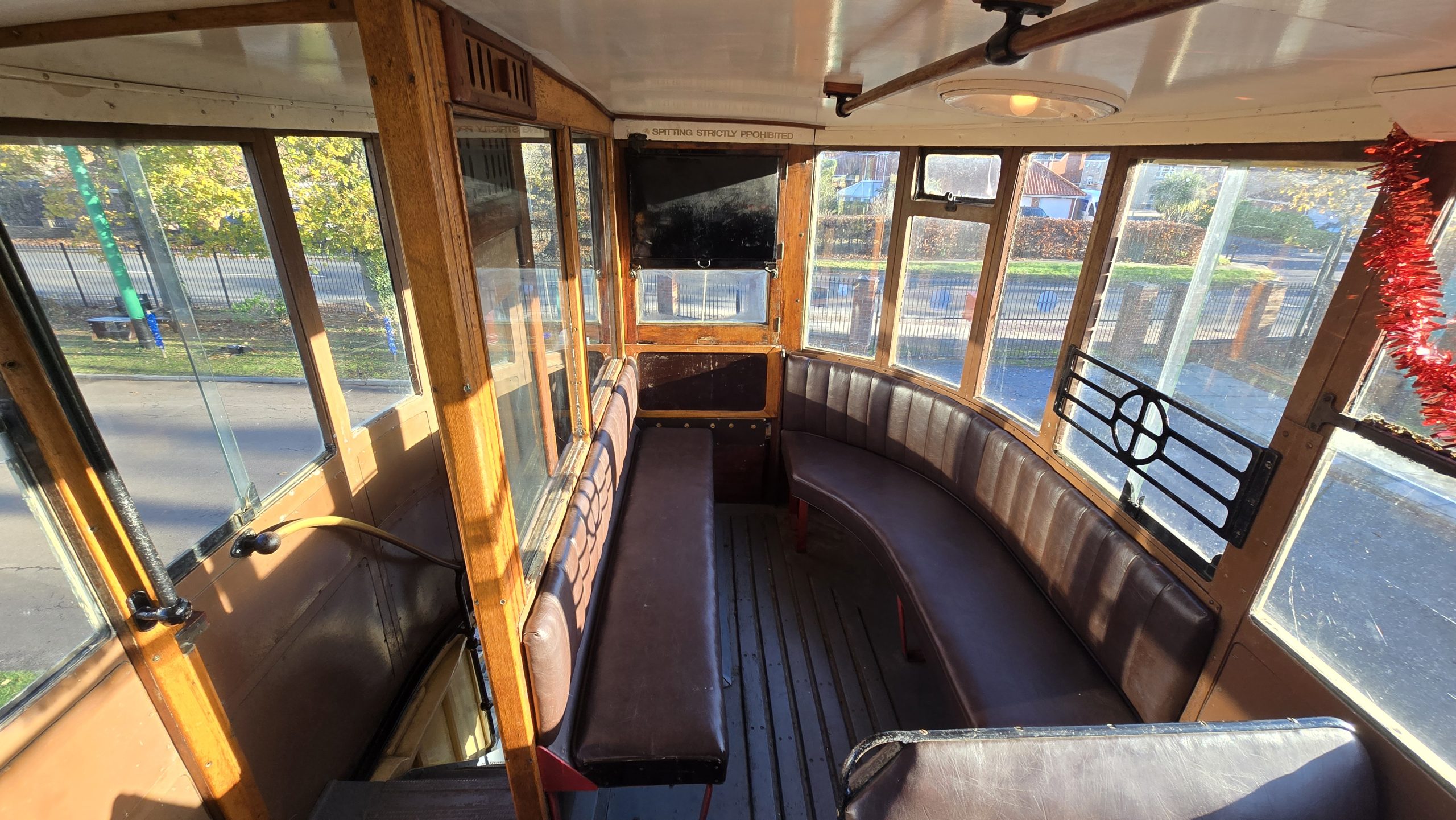

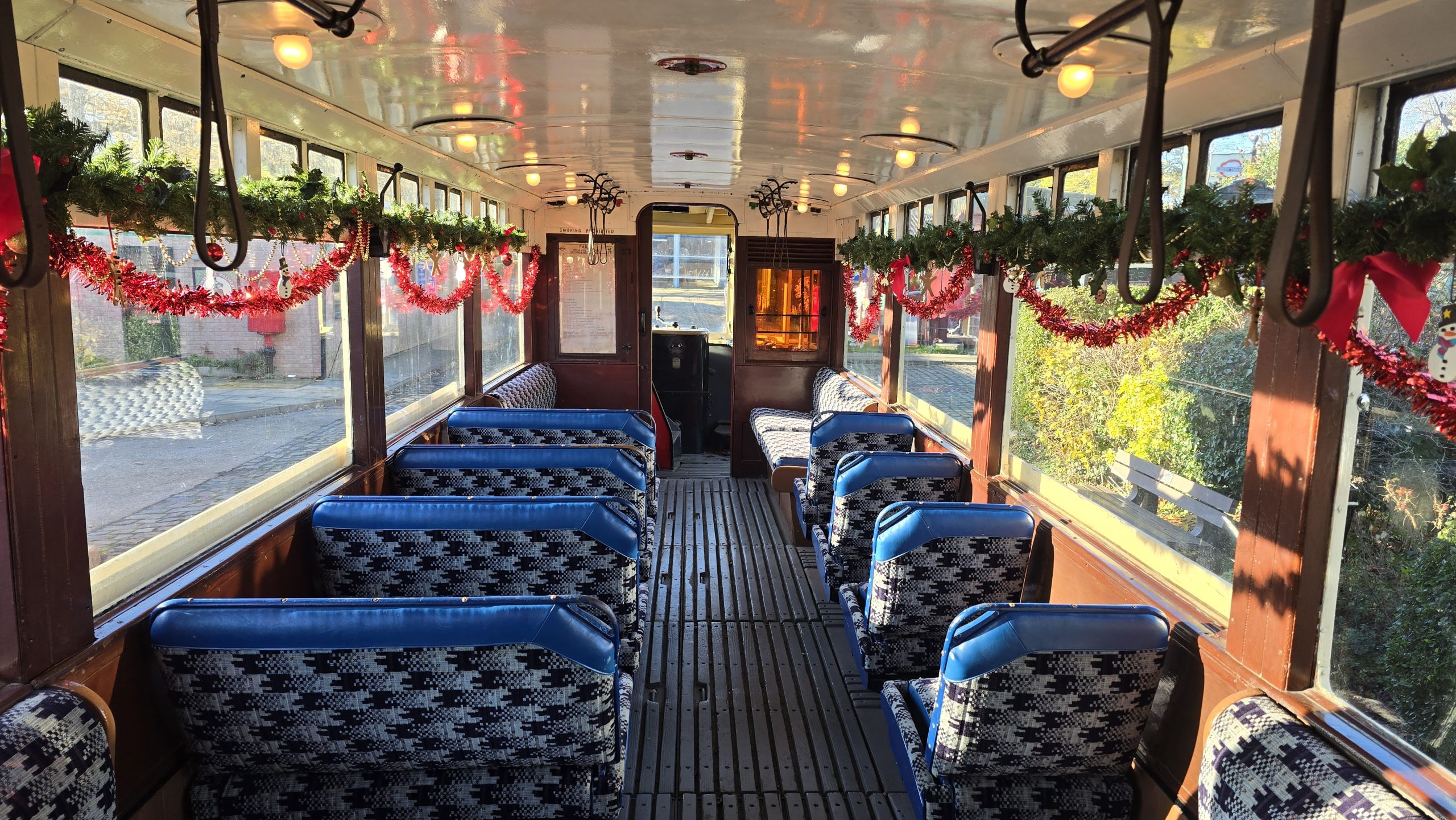

76 Seats (28 In / 48 Out)

Operational in Regular Service

Tram Workshop

Technical Specifications

Body Builder: English Electric Co

Truck Builder: EMB

Motors: 4 x Metrovick 35HP

First Owner / Operator: London County Council

Seating Capacity: 76 Seats (28 in / 48 Out)

Current Status: Operational in Regular Service

Current Location: Tram Workshop

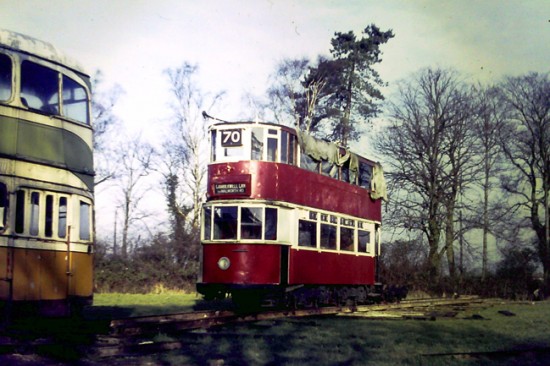

Picture Gallery

Timeline

timeline_pre_loader

1930 - Date Built by English Electric Co

1930 - Date Entered Service

1952 - Date Withdrawn from Service

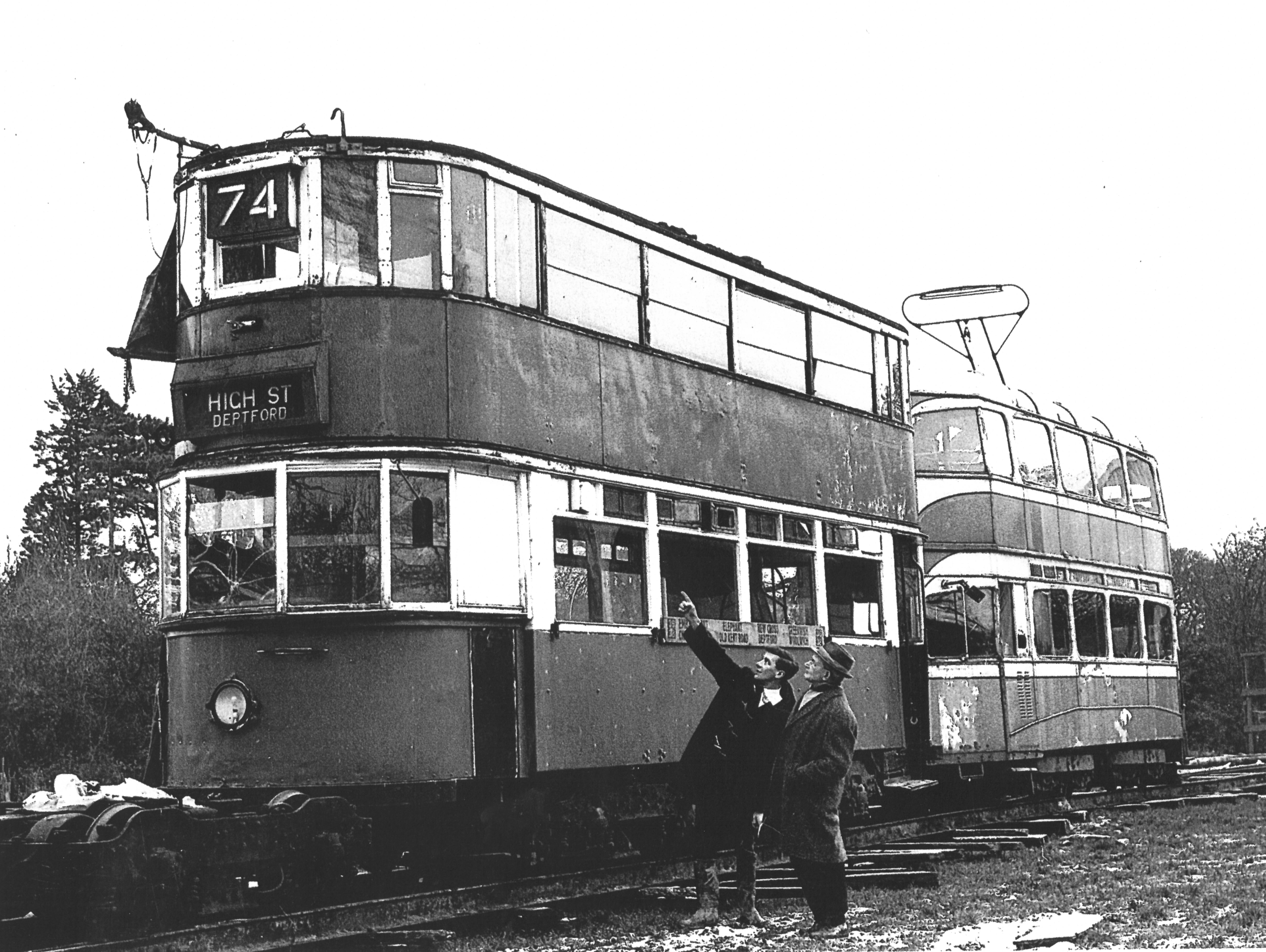

1952 - Transported to Chessington Zoo under private ownership

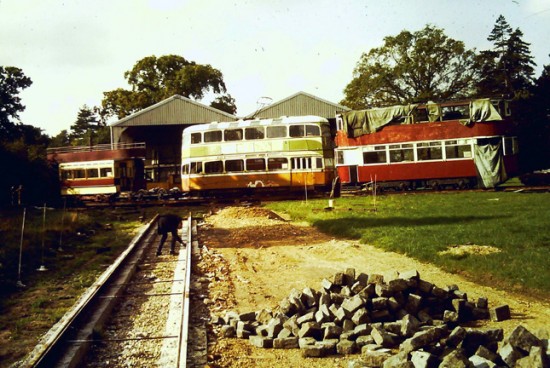

1964 - Transported to EATM site under private ownership
